FK-6 Auger Bagger Machines & FKP-10 Air Baggers

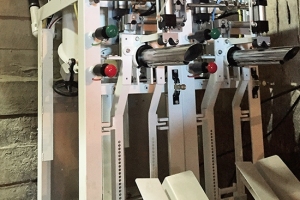

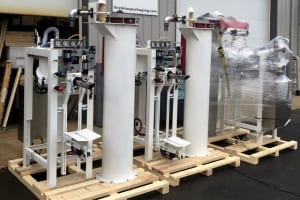

FKP-10 Pneumatic Bagger

FKP-10 Options

  • Automatic Start

  • Automatic Bag Discharge

  • Automatic Fill Tube Purge

  • Custom Fill Spouts

  • Air Alleviating Spouts

  • Replaceable Liner Spouts

  • Drum & Pail Filling Attachments

  • Stainless Steel Facings

  • Dust Hoods to Suit Requirements

  • Distinctive Finishes

  • Electronic Scale

A simultaneous fill and gross weighing machine, the FKP-10 model is an efficient fluidizing bagger with an integrated product chamber that delivers superior product handling and scale weight accuracy. The FKP-10 pneumatic-type baggers from First Klas have an automatic start option which is activated when a bag is placed on the fill spout, which allows the bag clamp to come down and automatically start the bagger.

Our high performance air baggers can also accommodate an optional automatic bag discharge, which facilitates the automatic release of the bag from the machine onto a conveyor once it’s full. The FKP-10 model can also be modified so that the bagger will dispense the product by using various spouts, or it can be equipped with air alleviating spouts.

First Klas FKP-10 air baggers are available with many options, including versions with replaceable liner spouts. We can help you customize your air bagger with stainless steel facings to accommodate corrosive materials or food products, or with a dust hood to suit individual requirements.

For your added convenience, our pneumatic-type baggers can be further equipped with an electronic scale option, or with a distinctive finish that makes it suitable for corrosive or wash down environments. At First Klas, we can also supply you with top-quality replacement parts for most types of bag filling equipment and commercial packers, including pneumatic baggers.

Specs

  • Weight Range: 20-110 lb (9-50 KG) Bags

  • Fill Rate: 1-12 Bags/Minute (Depending on product characteristics & bag sizing)

  • Bag Types: Paper, Plastic, & Poly-woven Valve Bags

  • Typical Scale Weight Accuracy: +/- .5-1% of Target Weight

  • Control Air: 80 PSI at 1 CFM per Bag Fill Cycle

  • Possible Electrical Requirements: 110 Volt, 220 Volt, 380 Volt, 440 Volt, or 575 Volt/3 Phase/ 60 Cycle

Applicable Uses

  • Building Materials: Cement, Concrete, Stucco, Grout, Plaster, Sand, Refractories

  • Industrial Materials: Graphite, Garnet, Barite, Bentonite, Gypsum

  • Chemicals: Plastic Pellets, Fertilizer, Hydrated Lime, Zinc Oxide, TIO2, Iron Oxide, Carbon Black

  • Food Products: Flour, Sugar, Cake Mixes, Cocoa

  • Agricultural: Feed, Seed, Fertilizer, Wood Pellets

Features

  • Modular design for effortless add-on of multiple units

  • Scale assembly and operator gauges mounted at front of bagger

  • Full flexure mounted weighing apparatus for consistent support through scale travel

  • Low pressure blower may not be required for find powders

  • Pressure assist product chamber for enhanced control and more rapid filling

  • Fluidizing options to better accommodate your product needs

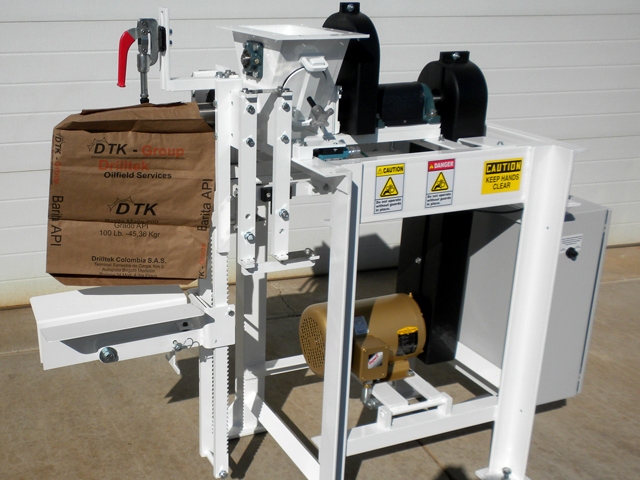

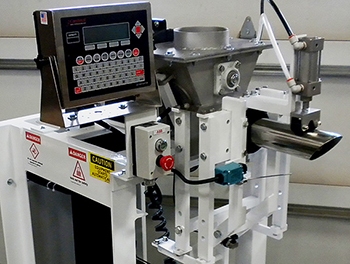

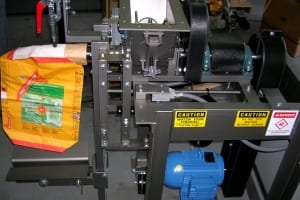

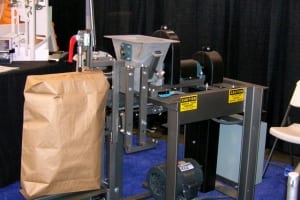

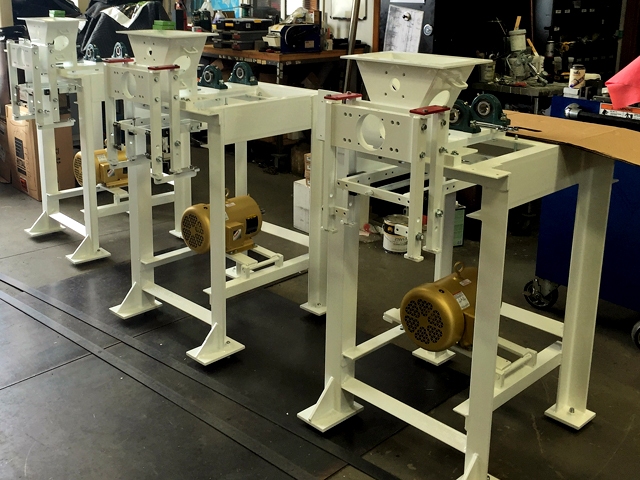

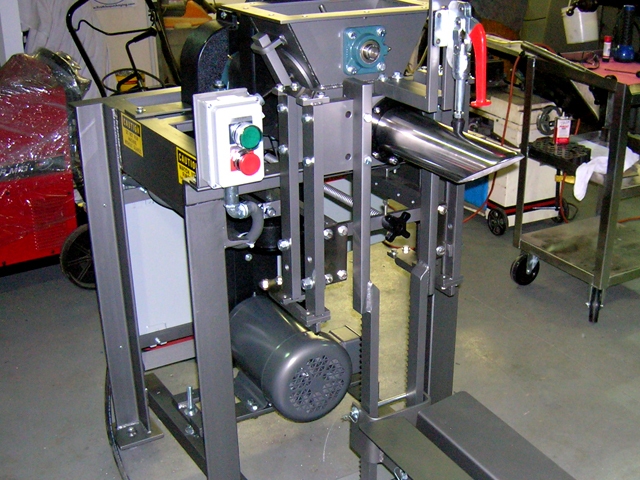

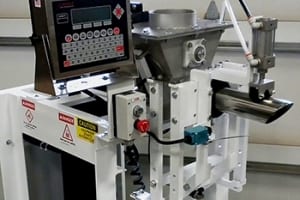

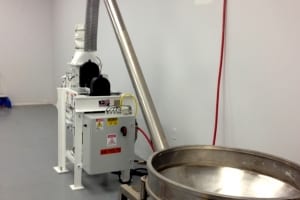

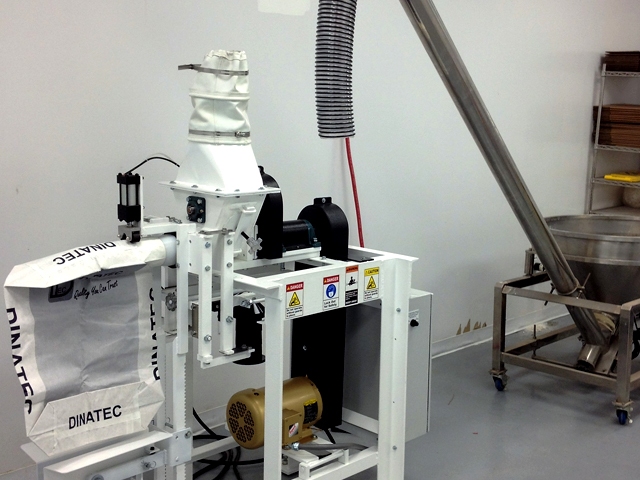

FK-6 Auger Bagger

FK-6 Options

  • Automatic Start

  • Pneumatic Bag Clamp

  • Automatic Bag Discharge

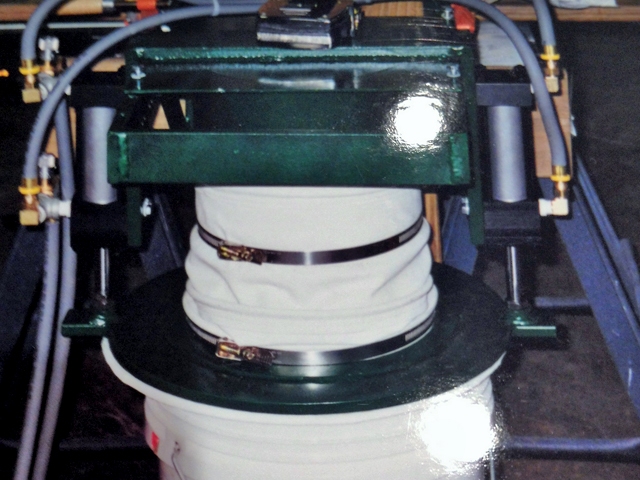

  • Drum & Pail Filling Attachment

  • Hard Facing for Filling Screw

  • Stainless Steel Facings

  • Electronic Scale

  • Variable Speed Drive

  • Distinctive Finishes Available

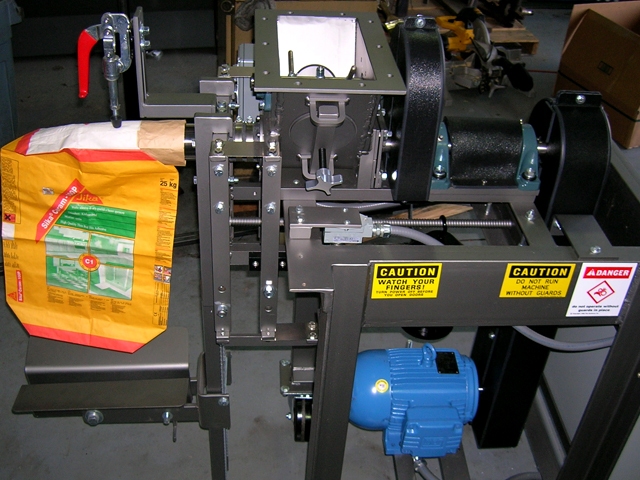

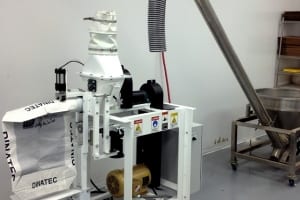

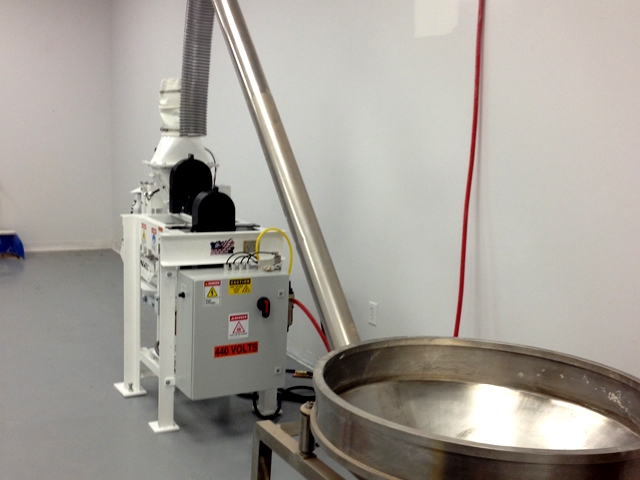

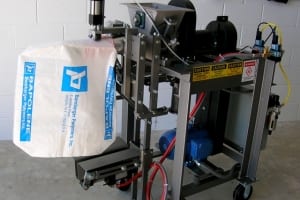

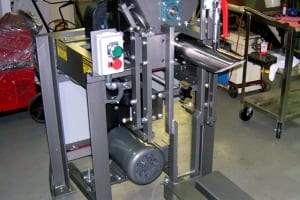

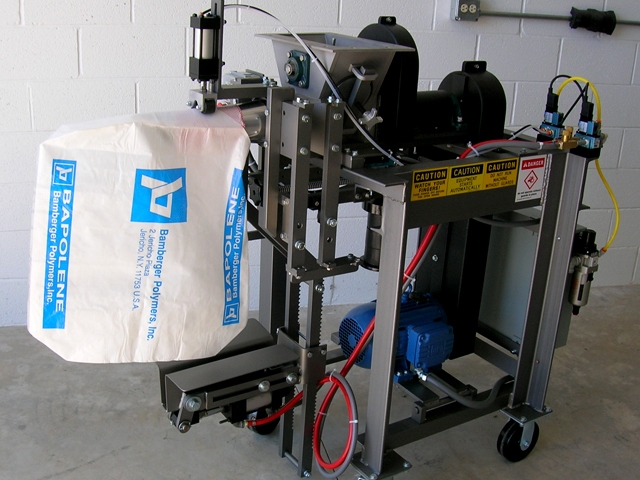

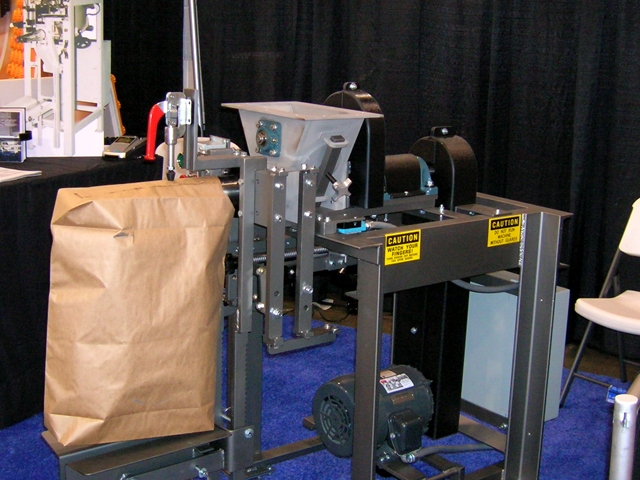

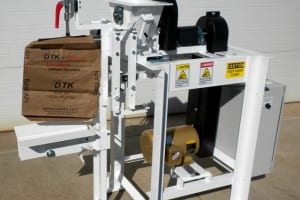

A simultaneous fill and gross weighing machine, our FK-6 valve bag filler features a proven, dependable design that makes it versatile, economical, and easy-to-operate. This high- performance auger bagger can easily be gravity fed from your product supply bin or blender.

As the product enters the machine’s bagger it passes through an agitator section and into the auger, which then conveys the product into a drum, bag, or pail. Once the product load reaches a preset weight, the FK-6 bagger automatically stops the flow of the product.

Motor Controls

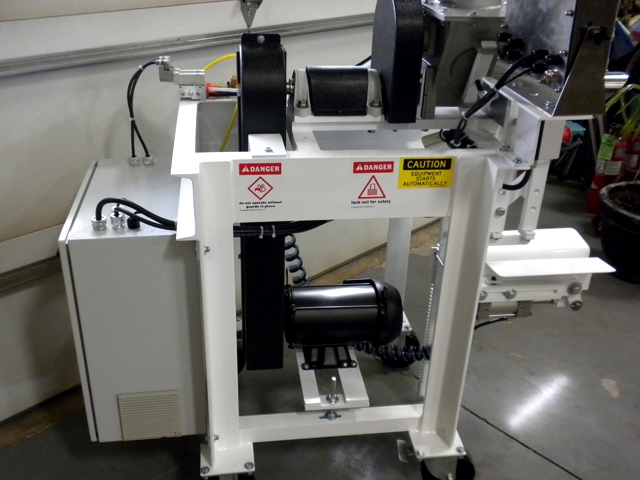

Our FK-6 features a heavy-duty, 3 HP TEFC drive motor (5 HP optional). Mounted in a NEMA 12 enclosure at the rear of the bagger, standard motor controls include a transformer for 120 V/ 1 ph power to the operator controls. All wiring and components on the FK-6 are NEMA 12 rated.

Scale & Weighing Mechanism

Supported by flexure plates, the weighing portion of the FK-6 bagger includes a fill spout and bag support. The machine’s standard mechanical scale features a rugged, single-beam design that includes two inverted pivots. This allows the operator to easily adjust the bag’s weight by simply turning the counterweight support screw located at the front of the bagger. A sliding counterweight-type fine weight adjustment is also positioned within easy reach of the operator.

Specs

  • Weight: approximately 850 lbs.

  • Height: 51 ¼”

  • Width: 28”

  • Depth: 62”

  • Motor: 3 HP/5 HP Three Phase

Features

  • Heavy-duty construction that minimizes maintenance and improves longevity

  • Compact size and low overall height facilitate ease-of-installation under blenders and in low headroom areas

  • Versatile hopper design and assortment of filling screw options accommodate a wide range of products

  • The product hopper’s agitator assembly helps prevent bridging while maintaining a continuous feed to the auger screw

  • Designed to fill valve bags as well as open-top bags, drums and pails

  • Features a reverse cycle at the end of the bag fill to stop product flow while enabling more accurate weights and cleaning filling
